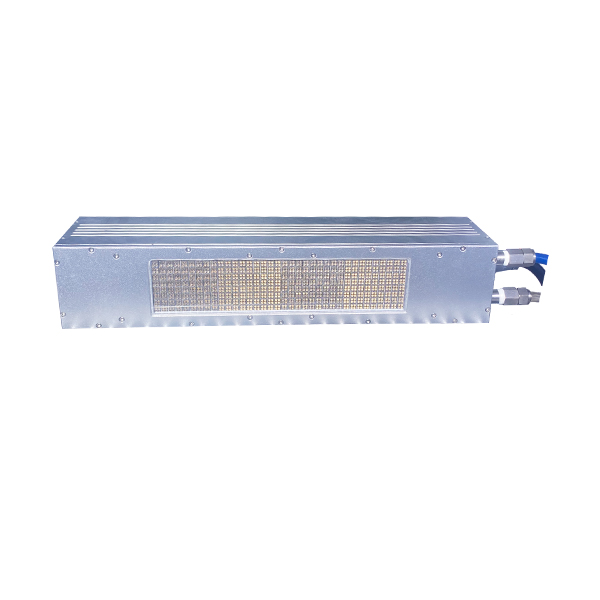

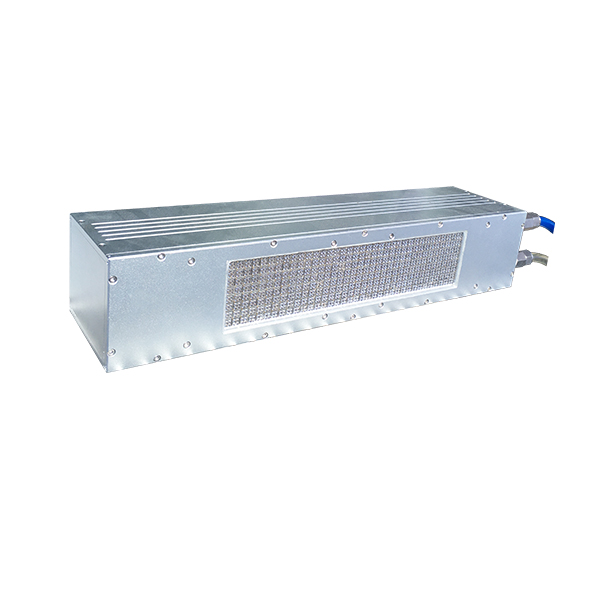

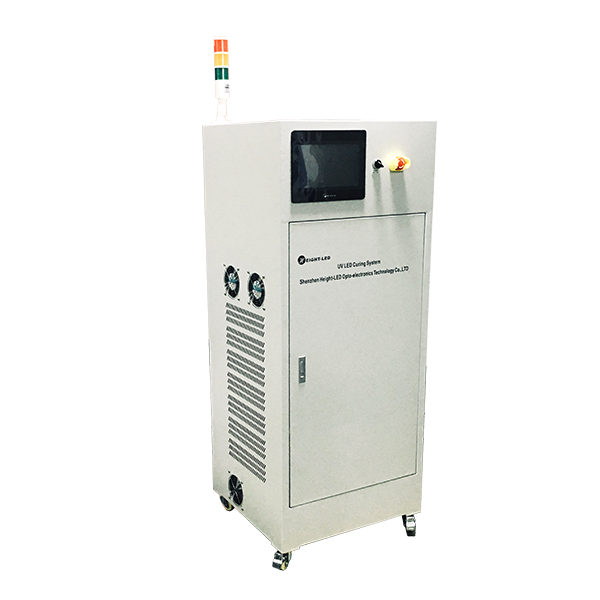

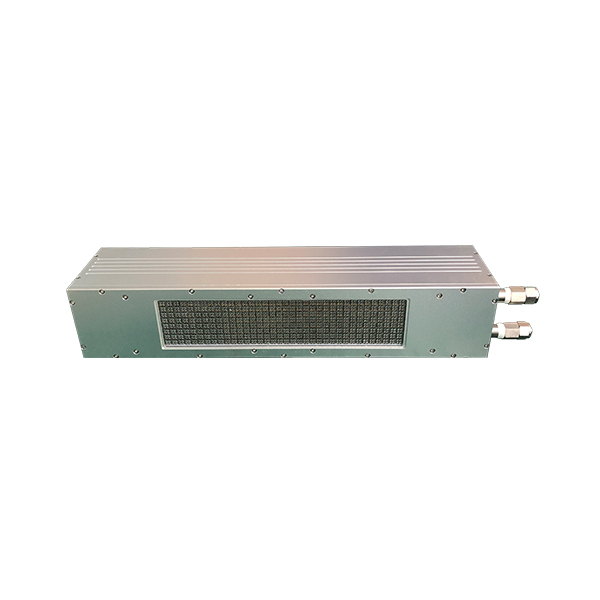

A high-performance UVLED surface light source curing system designed for UV flexo printing and UV ink curing. The system mainly includes a controller, 8 UVLED irradiation heads and a water cooler. The UVLED irradiation head is integrated with imported high-intensity ultraviolet LEDs. The UV spectrum wavelength is 395nm, air-cooled heat dissipation, and the effective curing area is 280X60mm. It supports external signal input and triggering, and can be equipped with semi-automatic or fully automatic production lines.
UV LED curing surface light source characteristics:
.No infrared radiation, cold light source, suitable for curing various heat sensitive materials.
.It does not need to be preheated when turning on, and it can be used immediately, and the maximum light intensity can be reached instantly.
.Power saving, simple and easy to operate.
.No mercury, safe and environmentally friendly.
.The light source adopts four-core lamp beads, which is more stable.
Irradiation head parameters and number can be customized
