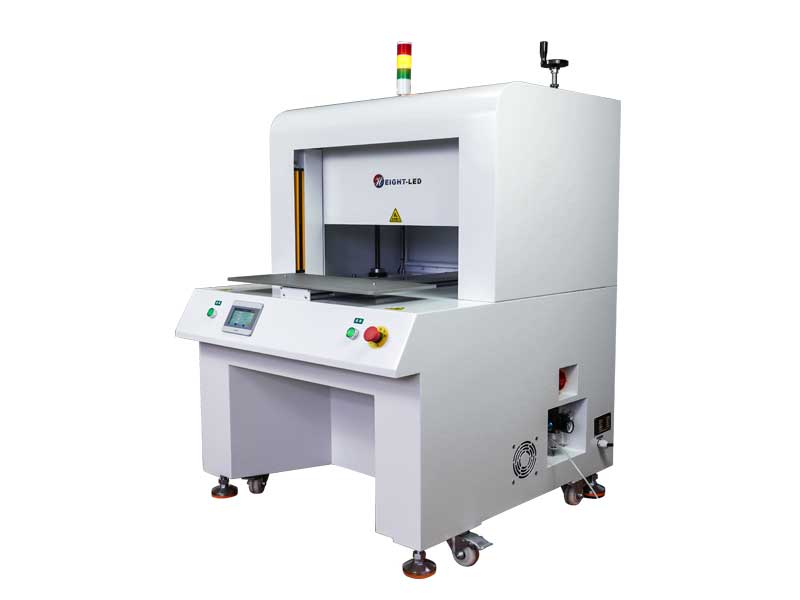

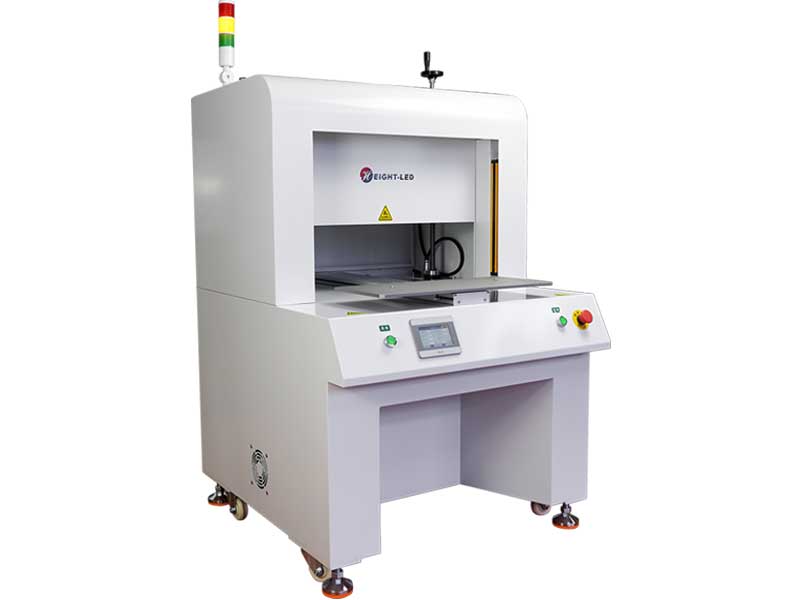

I. Equipment features

1. the equipment supports UVLED current real-time monitoring, UVLED high temperature, fault alarm function and energy saving protection function.

2. uvled dispensing automation curing equipment to provide manual mode and automatic mode optional, manual mode, into the manual debugging interface, you can independently operate the tray running, determine the product curing position, but also can independently operate the UVLED on and off; automatic mode, both hands at the same time press the start button (two buttons are not pressed at the same time within 0.5S, the judgment is invalid), the product moves to the Curing position, shading door closed and open the UVLED curing (in the process of shading door operation, the safety grating trigger, the device stops immediately), curing is complete, shading door open, the product back to the initial position, waiting for the product to take away.

3. the equipment supports automatic blackout door leakage of ultraviolet light protection and safety grating anti-pinch protection, uvled curing equipment light source irradiation height support hand wheel adjustment.

4. equipment with digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.

Second, the light source characteristics

1. high efficiency and energy saving

UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.

2、Wide range of application

UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

3、Long life

UVLED long service life, reduce the investment cost of equipment. uvled curing equipment that is on and off, no need to warm up, the number of switches does not affect the service life.

4、Green

Comply with RoHS, no mercury.
