The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

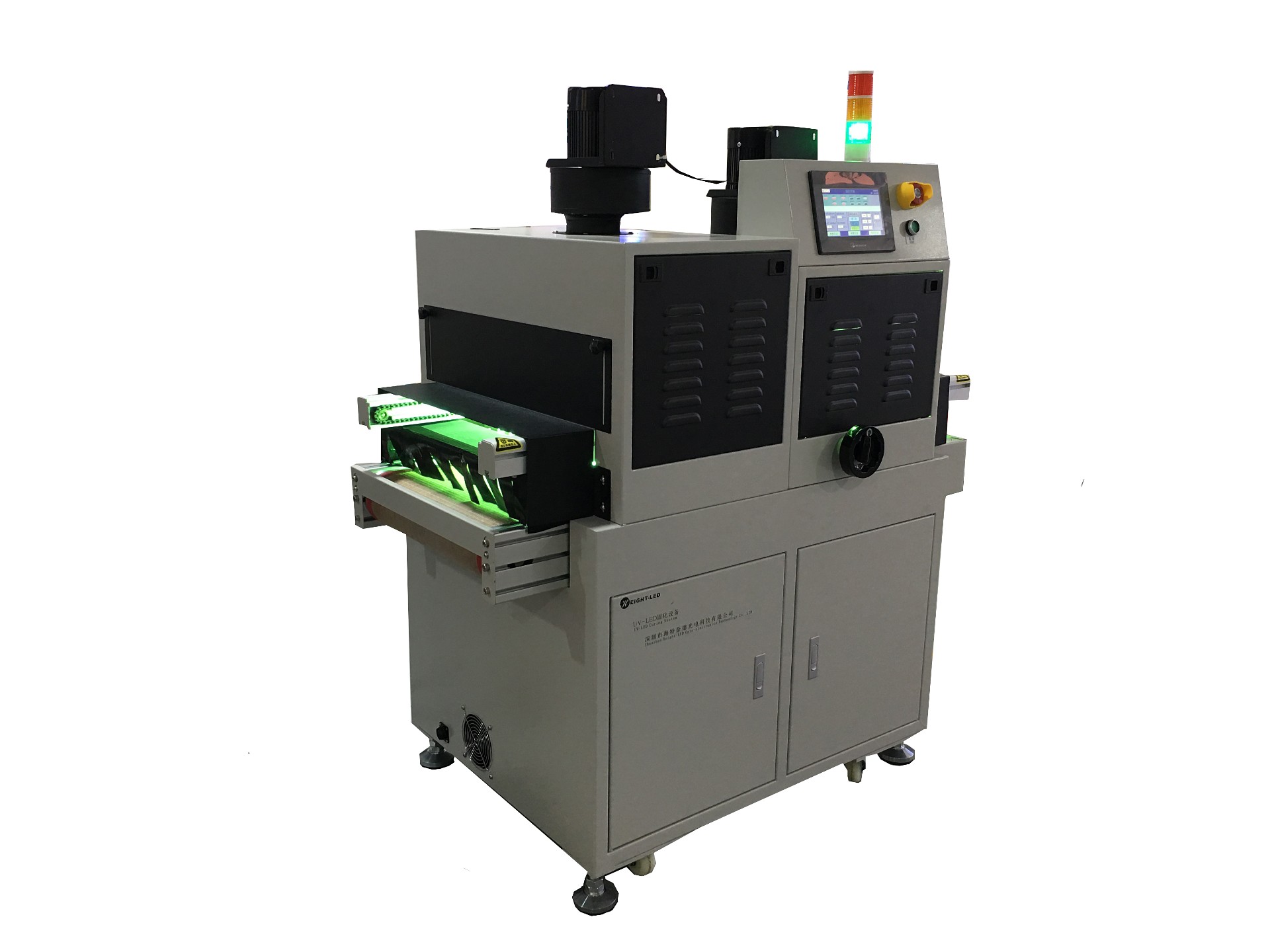

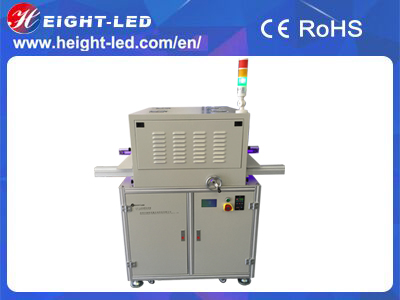

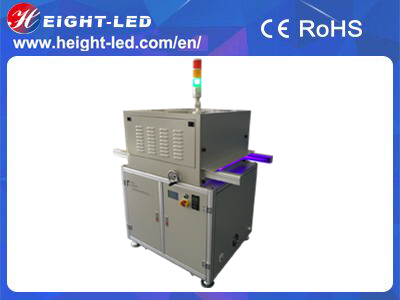

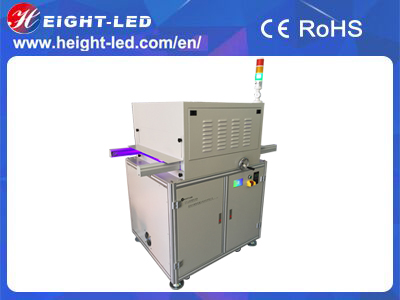

This uv conformal coating curing design with the high performance UVLED surface light source curing system, the system
mainly contains control System, UVLED head and chain conveyor belt. UVLED irradiation head mining,With the import of
high-intensity UV LED integrated, UV spectral wavelength of 405nm, mining With forced air cooling,effective curing
area of 500X400mm, support outside department of signal input and trigger, can be equipped with semi-automatic or fully
automated production line application,transfer the use of two stainless steel chain,the width of the chain can be manually
adjustable by the size of the product fixture.
