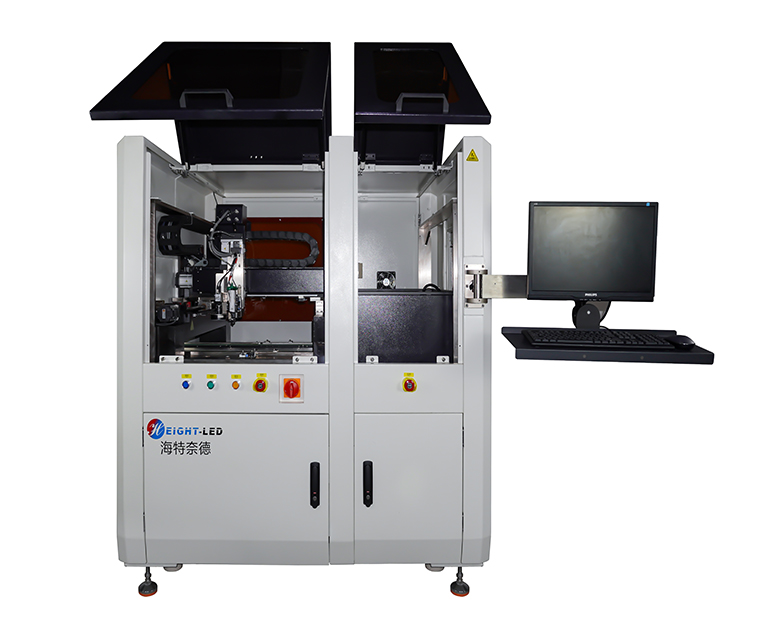

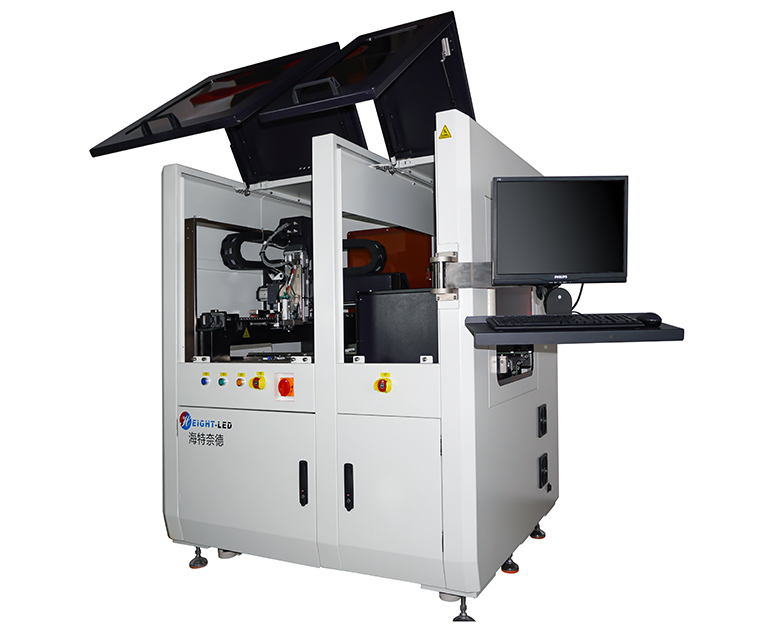

CCD dispensing and curing machine equipment supports two-stage track, SMEMA online function. Dispensing and curing machine supports laser distance measurement, automatically adapting to changes in substrate height and product height.
I. Equipment features
1、Equipment with intelligent safety gate protection function, air pressure alarm, no glue alarm, self-diagnosis function of abnormal points.
2. the device supports multi-valve applications, compatible with pneumatic injection valves, piezoelectric valves, thimble dispensing valves, screw valves and so on.
3. the device supports two-stage track, SMEMA online function.
4、Equipment supports laser distance measurement, automatically adapting to changes in substrate height and product height.
5、Equipment can be selected according to the product process single MARK, double MARK, three MARK points, a variety of corrective algorithms, accurate positioning.
6、Equipment supports external scanning gun and camera scanning code, can be integrated into the MES system management.
7. dispensing trajectory programming at the same time to support graphical drawing and visual teaching, support for sub-task array, rapid generation of processing trajectory. 8. the device supports automatic cleaning of the dispensing valve, can be customized according to the number of times or intervals between the dispensing cleaning process.
9. the device supports the offset setting of the glue valve, wizard operation to quickly calibrate the dispensing trajectory.
10. the device supports multi-color light source options (white, blue, red), to adapt to different product image modeling.
11. UVLED curing support light power 1%-100% adjustable, adjustable irradiation time, automatic sensing products automatically switch the light.
12、Running speed 0-500mm/s can be set. 13、Equipment to support the automatic adjustment of track width.
Second, the light source characteristics
1. high efficiency and energy saving
UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.
2、Wide range of application
UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of chips, heat-sensitive materials such as curing.
3、Long life
UVLED long life, reduce the investment cost of equipment. Ready to turn on and off, no need to warm up, the number of switches does not affect the service life.
4、Green
Comply with RoHS, does not contain mercury.
