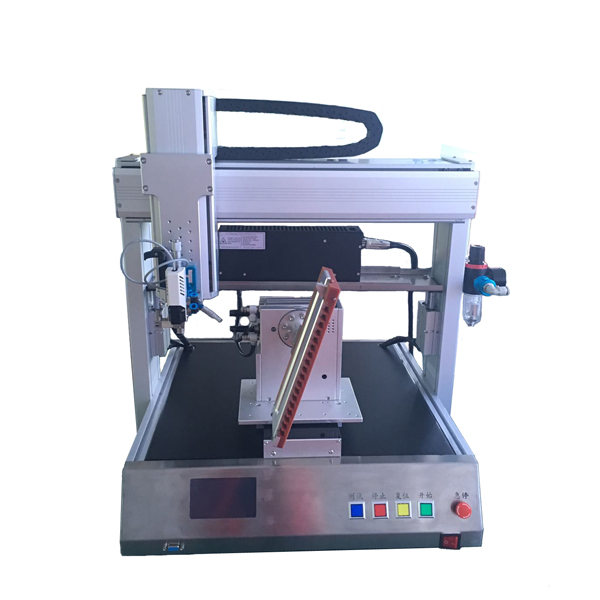

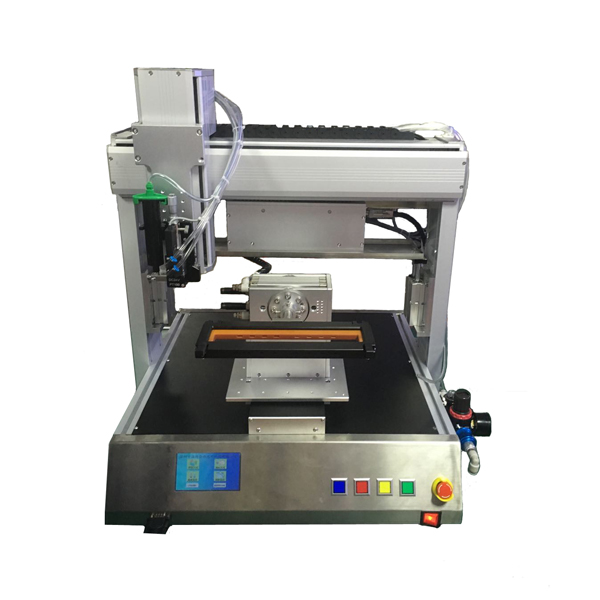

This uvled double-sided dispensing and curing all in one machine can dispense the product on both sides and cure quickly. The operation is simple and the maintenance is convenient. Set the program according to the product dispensing process requirements, press the start button, and press the stop button when you need to stop dispensing.Press the reset button after homing, and press the emergency stop button when you need to stop dispensing in an emergency. The whole process of dispensing and curing is fast. It can be customized according to customer needs to meet the mass production needs of various wire connectors.
Working characteristics of uvled double-sided dispensing and curing all in one machine:
1. It has functions such as drawing points, lines, arcs, circles, and irregular curve continuous tween input programs,
and can dispense in three dimensions;
2. Irregular curve, random point, line, surface, arc and other continuous dispensing functions;
3. Complete the one-side dispensing curing and automatically turn over to carry out the other side dispensing curing;
4. Static eliminator can eliminate static electricity within ± 100V;
5. The automatic compensation function of dispensing strength makes the operation more convenient;
6. XY area array, translation rotation calculation function, anti-material tray, suitable for different work positioning;
7. Support three-axis space linear interpolation, three-axis space circular interpolation, ellipse arc interpolation.
