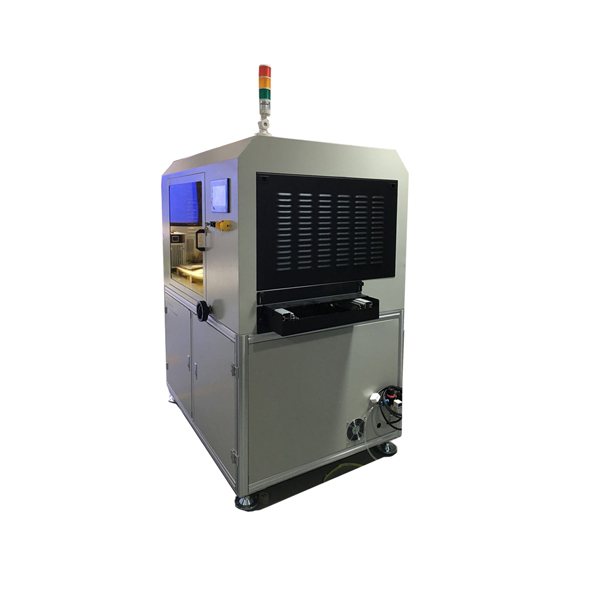

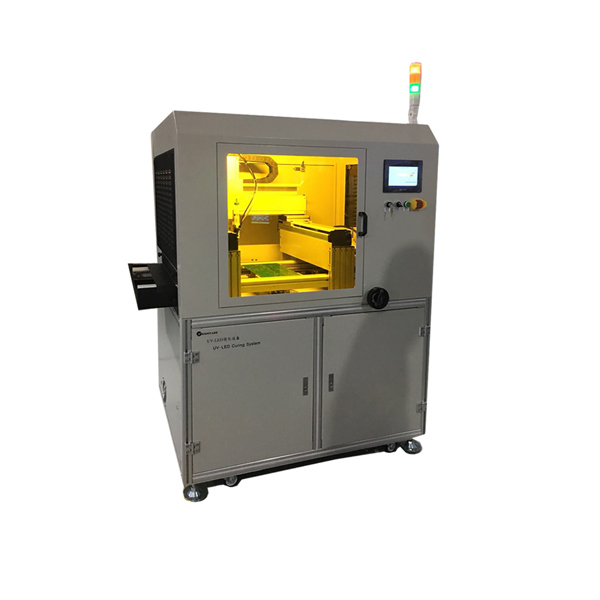

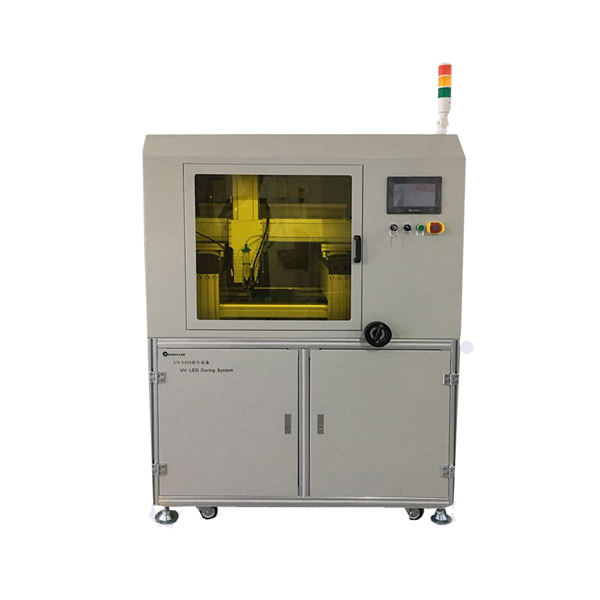

On-line 3-axis UVLED Dispensing, Spraying and Curing All-in-One Machine:
1. Draw points, lines, arcs, circles, continuous tween input programs for
irregular curves and other functions and can dispense 3D;
2, any point, line, surface, arc and other irregular curve continuous dispensing function.
3. Automatic compensation for dispensing strength makes operation more convenient.
4, XY area array, translation and rotation calculation function, reverse feed tray, suitable for different work positioning.
The use of this equipment with a protective layer in the PCBA three-proof paint will greatly increase the service life of
the circuit board and improve the mechanical strength and insulation characteristics of the product.
Support customization, create the right UV equipment for you

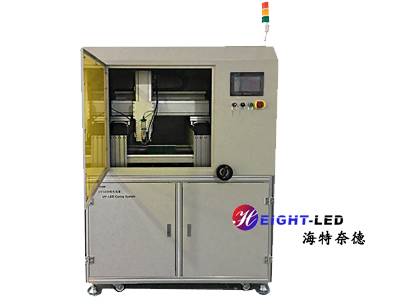

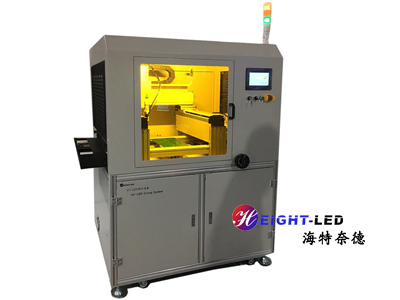

1, Equipment Name: Online 3-axis UV Dispensing and Curing Machine
2, Equipment model: UV-D250 * 350 * 150
3, Product features
1) No infrared radiation, cold light source.
2) No warm-up is needed after starting up, and it can be used immediately when it is turned on,
reaching the maximum light intensity in an instant.
3) It is safe and environmentally friendly without mercury.
4, equipment use
It is mainly used for curing UV glue and other glues, medical equipment, touch screens, and optical lenses.
5, equipment input parameters
1) Power supply voltage: 220 ± 10%, 50Hz
2) Control loop voltage parameter: DC24V;
3) Compressed air: 0.5 ～ 0.7Mpa
6, equipment safety matters
1). Electrical performance: Class E, with good grounding and impedance above 500MΩ.
2). The product has a safety door or cover to protect the operator from injury.
7, equipment painting
1). Coating requirements: Use oil-resistant paint, smooth surface coating without bumps, etc.
2). Exterior surface of the device: The color card provided by the purchaser shall prevail (the purchaser does not
make a request, according to our standards).
8, Equipment use environment
1). Ambient temperature: -5 to 50
2). Ventilation: Good
